Vrf Heat Recovery System

It can provide either cooling or heating and can also provide both heating and cooling at a time. Instead of having a separate air conditioner and heater you can get all your cooling needs from the heat recovery VRF system. VRF Heat Recovery System. VRF systems provide simultaneous heating and cooling. This paper will outline the benefits of a typical VRF. The VRV IV is the first Variable Refrigerant Flow VRF system to be assembled in North America. Heat Recovery VRF system VRF-HR Variable refrigerant flow systems with heat recovery VRF-HR capability can operate simultaneously in heating andor cooling mode enabling heat to be used rather than rejected as it would be in traditional heat pump systems.

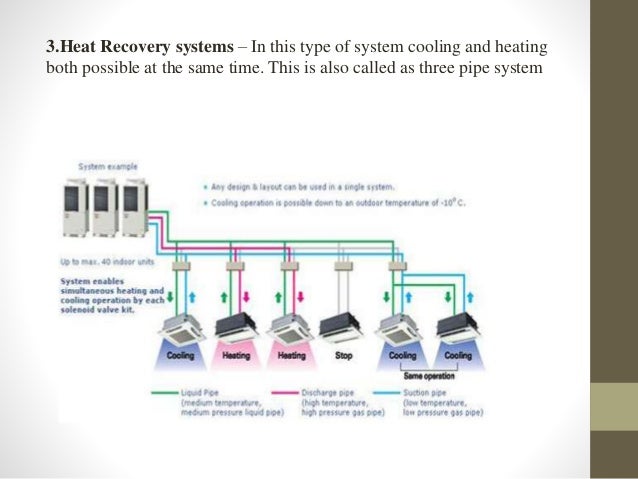

Heat Recovery VRF Systems also known as 3-pipe VRF allow heating and cooling in all indoor terminal devices simultaneously.

Free Revit Family Download for LG Air Conditioning Technologies Heat Recovery Unit - 3 branches. Heat Recovery VRF system VRF-HR Variable refrigerant flow systems with heat recovery VRF-HR capability can operate simultaneously in heating andor cooling mode enabling heat to be used rather than rejected as it would be in traditional heat pump systems. In this system there are three pipelines hence it is known as the three pipeline systems. The greatest efficiency will be realized when the heating and cooling loads are equal by maximizing the amount of energy that can be transferred from one zone to another using the refrigerant as shown in Fig. VRF Heat Recovery System Diagram. Heat Recovery VRF system VRF-HR Variable refrigerant flow systems with heat recovery VRF-HR capability can operate simultaneously in heating andor cooling mode enabling heat to be used rather than rejected as it would be in traditional heat pump systems.

Heat Recovery Vrf System Download Scientific Diagram

Vrf heat recovery system. In the heat recovery configuration VRF also allows for heating and cooling simultaneously in different zones by using heat energy from one space to condition another reducing the amount o f created energy further enhancing energy savings and increasing occupant comfort. VRF-HR systems are equipped. This is accomplished with the addition of a Branch Selector Box which is the traffic cop of the refrigerant.

The VRF heat pump system provides heating and cooling for all indoor units at a specific time see Figure 1 The VRF system provides nonsimultaneous cooling and heating at any time. An indoor unit that is heating will. VRF-HR systems are equipped.

About LG Electronics USA Inc. MML4 Exposed Floor Console Unit. Download BIM Content Cut Sheets Specs Installation Guides and More in the Cloud with BIMsmith Market.

Apply this to a whole floor or even entire building and Heat Recovery type VRF increases air conditioning efficiency greatly and can lower energy usage by up to 30 and in some cases even more. If you dont believe this condition will ever exist in your home then the Split-System Heat Pumps are the easier and more economical answer. The outdoor units can modulate capacity based on the requirements of the individual zones thus saving energy by not always running at 100 capacity and improving occupant comfort by maintaining temperature as needed in.

Heat recovery system. Units can be combined as double or triple modules for larger capacity requirements. VRF systems are available either as heat pump systems or as heat recovery systems for those applications where simultaneous heating and cooling is required.

In this system there are three pipelines hence it is known as the three pipeline systems. Variable Refrigerant Flow VRF HVAC systems consist of outdoor units connected to multiple indoor units via refrigerant piping to provide cooling and heating to individual zones. VRF Heat recovery systems allows you to have some rooms in cooling mode while others are in heating mode.

Schematic diagram of Heat recovery VRF System. To achieve this a Hitachi Cooling Heating Change Over Box or CH-Box is integrated into the Heat Recovery VRF system.
